Circles and Squares

circles and squares 1

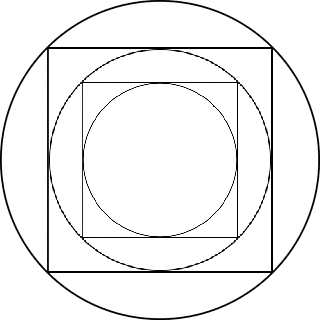

Here are three circles and two squares, inscribed successively as shown.

If the diameter of the largest circle is 10, what is the diameter of the smallest circle?

	Select Click for Answer

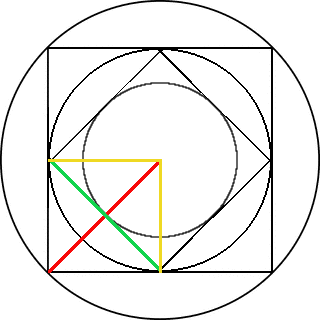

There are a number of ways to solve this. The simplest is to rotate the smaller square 45 degrees: Now the radius of the largest circle (red), which we know to be 5, equals the side of the smaller square (green), because they’re the two diagonals of a square. So the diameter of the smallest circle is 5.
